Repair Peripherals Fiber Optics Cables: Methods and Tools Techniques for Repair of fiber optics cables are required to understand the process, these high data transmission lines would fracture more than typical copper cables due to their fragility if left unprotected but protection on all points is prohibitive. It is very important to know on how these cables can be fixed in order to maintain the integrity of your network.
How Optical Fiber Gets Damaged
There are several different types of damage to which fiber optic cables can fall victim.
Damaged Connectors: Frequently caused by overzealous tugging on equipment while it is being installed.
Cable breakage -This may be caused during cable installation, vandalism or through damage from pests like rats.
The first thing you need to do is know the type of damage so that soon you will be able to identify how your windshield could be repaired properly.
Repair Techniques

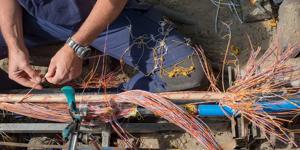

Splicing Broken Cables
If a fiber optic cable breaks, it needs to be spliced back together. This involves:
Locating the Break: Utilize an Optical Time Domain Reflectometer (OTDR) to determine where exactly things went south.
Removing the Damaged Section: Use a fiber optic cutter to slowly take off the damaged part.fiber optics (ad)
Prepare the fiber by stripping down to it and cleaning with Alcohol wipes.
Splicing Options:
Mechanical Spicing — fibers aligned with the help of a connector, this option is more convenient than fusion splicing but there might be larger signal loses.
Fusion Splicing— Fusing fibers with heat, this method has low signal loss and results in very robust connections.
Repairing Connectors
If the trouble is in a damaged connector rather than fiber itself:
Step 1: Cutting and Stripping(cut to the damaged part & strip back cable jacket)
Cleave and Clean: Prepare fiber ends using a precision cleaver and clean both sides well.
Re-terminationHowever, establish a correct practice of re-connecting the new connector by ensuring that it is properly secured.
Tools Required for Repair
A few tools that are required for successful repair of fiber optic cables:
OTDR: Breaks in the cable.
Fiber Optic Knife: Used to cut out damaged portions of the cable without damaging it further.
FIBER STRIPPER: To avoid internal fiber when working with.
Precision Cleaver: To keep those cuts nice and clean leading to neater splicing.
Fusion Splicer or Mechanical Splice Kit – Depends on what splicing method you have chosen.
Conclusion
Fiber optic cables can be easily repaired, but proper tools and care must used in order to not damage them any further. Knowing both methods means more sustainable repairs that respect the integrity of your network. Through regular maintenance and timely repair, you can greatly reduce downtime and enhance your communication system’s reliability.
